Features Introduced
Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.
- Auto positioning slitting system.
- Paper pre-press device.
- 3 times delivery device(no impression line).
- Collecting board pneumatic lifting device.
Partial Introduction
Auto brake
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system
Paper pre-press device

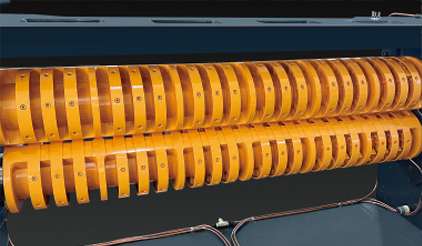

Embedded double helix knife(invention patent)
Reject gate
Anti-static device

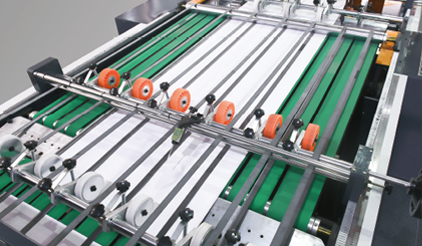

3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1100/1500/1700 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330 m/min |
| Max. cutting speed | 540 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100(45”)mm 1500(59”)mm 1700(67”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 21000/23000/26000kgs |
| Full-load power | 75/88/88kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 125 | 275 |
| 500 | 160 | 315 |
| 600 | 210 | 350 |
| 650 | 250 | 380 |
| 700 | 290 | 410 |
| 750 | 330 | 440 |
| 800 | 330 | 410 |
| 900 | 330 | 365 |
| 1000 | 330 | 330 |
| 1100 | 310 | 280 |
| 1200 | 300 | 250 |
| 1300 | 300 | 230 |
| 1400 | 300 | 210 |
| 1500 | 300 | 195 |
| 1600 | 300 | 188 |
| 1650 | 300 | 185 |

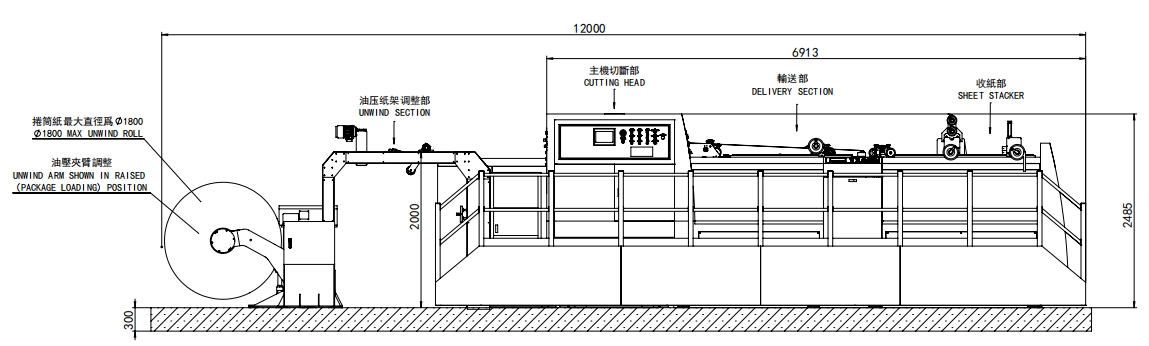

Drawing
Features Introduced
Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.
- Auto positioning slitting system.
- Paper pre-press device.
- 3 times delivery device(no impression line).
- Collecting board pneumatic lifting device.
Partial Introduction
Auto brake
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system
Paper pre-press device
Embedded double helix knife(invention patent)
Reject gate
Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1900 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 300 m/min |
| Max. cutting speed | 385 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1900(75”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 28000kgs |
| Full-load power | 106kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 100 | 210 |
| 500 | 110 | 220 |
| 600 | 155 | 260 |
| 700 | 230 | 320 |
| 750 | 290 | 385 |
| 800 | 300 | 380 |
| 900 | 300 | 345 |
| 1000 | 300 | 300 |
| 1100 | 290 | 265 |
| 1200 | 280 | 235 |
| 1300 | 260 | 210 |
| 1400 | 260 | 190 |
| 1500 | 260 | 175 |
| 1600 | 250 | 160 |
| 1650 | 250 | 155 |
Drawing
Features Introduced
Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.
Partial Introduction
換托盤.jpg)
Auto pallet changer
卷簾收紙裝置.jpg)
Non-stop rolling curtain paper delivery device
Auto brake
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system
Paper pre-press device
Embedded double helix knife(invention patent)
Reject gate
Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1100H/1500H/1700H |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330 m/min |
| Max. cutting speed | 540 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100(45”)mm 1500(59”)mm 1700(67”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 23000/25000/28000kgs |
| Full-load power | 78/91/91kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 125 | 275 |
| 500 | 160 | 315 |
| 600 | 210 | 350 |
| 650 | 250 | 380 |
| 700 | 290 | 410 |
| 750 | 330 | 440 |
| 800 | 330 | 410 |
| 900 | 330 | 365 |
| 1000 | 330 | 330 |
| 1100 | 310 | 280 |
| 1200 | 300 | 250 |
| 1300 | 300 | 230 |
| 1400 | 300 | 210 |
| 1500 | 300 | 195 |
| 1600 | 300 | 188 |
| 1650 | 300 | 185 |
Drawing
Features Introduced
Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.
Partial Introduction
換托盤-2.jpg)
Auto pallet changer
卷簾收紙裝置-2.jpg)
Non-stop rolling curtain paper delivery device
Auto brake
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system
Paper pre-press device
Embedded double helix knife(invention patent)
Reject gate
Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1900H |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 300 m/min |
| Max. cutting speed | 385 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1900(75”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 30000kgs |
| Full-load power | 109kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 100 | 210 |
| 500 | 110 | 220 |
| 600 | 155 | 260 |
| 700 | 230 | 320 |
| 750 | 290 | 385 |
| 800 | 300 | 380 |
| 900 | 300 | 345 |
| 1000 | 300 | 300 |
| 1100 | 290 | 265 |
| 1200 | 280 | 235 |
| 1300 | 260 | 210 |
| 1400 | 260 | 190 |
| 1500 | 260 | 175 |
| 1600 | 250 | 160 |
| 1650 | 250 | 155 |

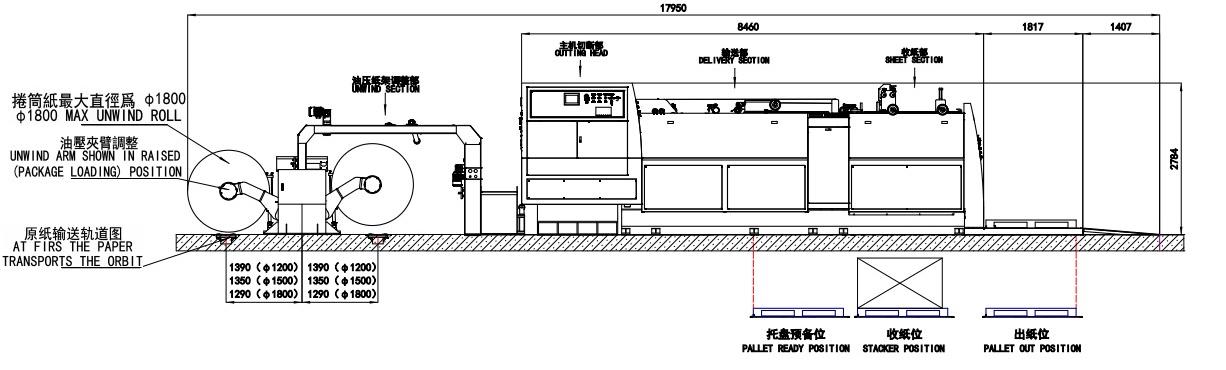

Drawing
Features Introduced
Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.
Partial Introduction
-1.jpg)
Auto splicer
換托盤-1.jpg)
Auto pallet changer
卷簾收紙裝置-1.jpg)
Non-stop rolling curtain paper delivery device
Auto brake
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system
Paper pre-press device
Embedded double helix knife(invention patent)
Reject gate
Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1100ZH/1500ZH/1700ZH |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330 m/min |
| Max. cutting speed | 540 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100(45”)mm 1500(59”)mm 1700(67”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 25000/27000/30000kgs |
| Full-load power | 81/94/94kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 125 | 275 |
| 500 | 160 | 315 |
| 600 | 210 | 350 |
| 650 | 250 | 380 |
| 700 | 290 | 410 |
| 750 | 330 | 440 |
| 800 | 330 | 410 |
| 900 | 330 | 365 |
| 1000 | 330 | 330 |
| 1100 | 310 | 280 |
| 1200 | 300 | 250 |
| 1300 | 300 | 230 |
| 1400 | 300 | 210 |
| 1500 | 300 | 195 |
| 1600 | 300 | 188 |
| 1650 | 300 | 185 |
Drawing
Features Introduced
Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.
Partial Introduction
Auto splicer
Auto pallet changer
Non-stop rolling curtain paper delivery device
Auto brake
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system
Paper pre-press device
Embedded double helix knife(invention patent)
Reject gate
Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1900ZH |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 300 m/min |
| Max. cutting speed | 385 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1900(75”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 32000kgs |
| Full-load power | 112kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 100 | 210 |
| 500 | 110 | 220 |
| 600 | 155 | 260 |
| 700 | 230 | 320 |
| 750 | 290 | 385 |
| 800 | 300 | 380 |
| 900 | 300 | 345 |
| 1000 | 300 | 300 |
| 1100 | 290 | 265 |
| 1200 | 280 | 235 |
| 1300 | 260 | 210 |
| 1400 | 260 | 190 |
| 1500 | 260 | 175 |
| 1600 | 250 | 160 |
| 1650 | 250 | 155 |
Drawing
Features Introduced
SMC-1100 Cigarette Packing Servo Precision Double-Helix High Speed Sheet Cutter Machine With Photoelectric Tracking is a high-precision and efficient sheet cutter equipment developed by our company.This machine adopts several edge position correction function,embedded double-helix design, non-stop rolling curtain paper delivery device, is easy to operate.The photoelectric tracking cutting accuracy is within ≤± 0.1mm,the edge of cutting paper is smooth without crude or powder.It is the most ideal photoelectric tracking sheet cutting machine in cigarette packing printing industry at present.
Partial Introduction

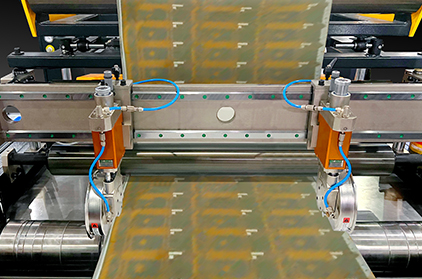

Slitting system

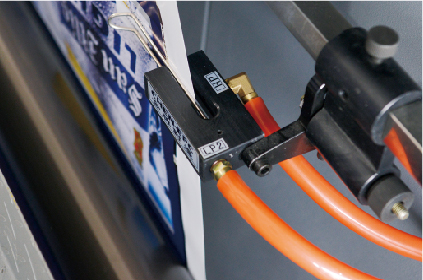

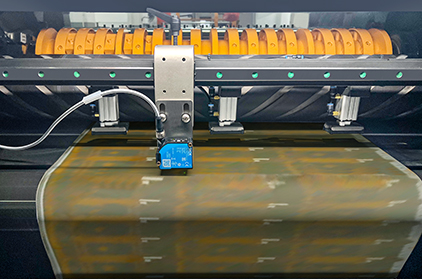

Photoelectric tracking system

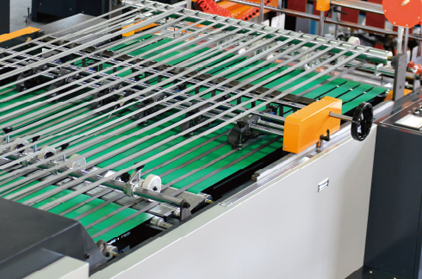

3 times delivery (No impression line)
卷簾式收紙-1-2.jpg)
Non-stop rolling curtain paper delivery device
Main Technical Parameter
| Model | SMC-1100 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1450mm |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330m/min |
| Max. cutting speed | 540cuts/min |
| Max. photoelectric tracking cutting meter speed | 150m/min |
| Max. photoelectric tracking cutting speed | 220cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100(45”)mm |
| Max. paper piling height | 1400mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220V×50Hz |
| G.W. | 18000kgs |
| Full-load Power | 75kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 195 | 435 |
| 500 | 240 | 480 |
| 600 | 325 | 540 |
| 700 | 330 | 475 |
| 800 | 330 | 410 |
| 900 | 325 | 365 |
| 1000 | 310 | 310 |
| 1100 | 300 | 275 |
| 1200 | 300 | 250 |
| 1300 | 305 | 235 |
| 1400 | 315 | 235 |
| 1500 | 330 | 220 |
| 1600 | 335 | 210 |
Drawing
Features Introduced
SM-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.
Partial Introduction
Auto anti curve
Auto edge position correction
-1.jpg)
Three sets of slitting knife are used for trimming and middle slitting
Embedded double helix knife(invention patent)
備-1.jpg)
Anti-static device
Conveying unit
Main Technical Parameter
| Model | SM-1100/1500/1700 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330 m/min |
| Max. cutting speed | 540 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100(45”)mm 1500(59”)mm 1700(67”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 18000/20000/23000kgs |
| Full-load power | 69/82/82kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 125 | 275 |
| 500 | 160 | 315 |
| 550 | 190 | 350 |
| 600 | 210 | 350 |
| 700 | 290 | 410 |
| 750 | 330 | 440 |
| 800 | 330 | 410 |
| 900 | 330 | 365 |
| 1000 | 330 | 330 |
| 1100 | 310 | 280 |
| 1200 | 300 | 250 |
| 1300 | 300 | 230 |
| 1400 | 300 | 210 |
| 1500 | 300 | 195 |
| 1600 | 300 | 188 |
| 1650 | 300 | 185 |
Drawing
Double Roll
Four Rolls
Features Introduced
SM-1900 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.
Partial Introduction
Auto anti curve
Auto edge position correction
Three sets of slitting knife are used for trimming and middle slitting
Embedded double helix knife(invention patent)
Anti-static device
Conveying unit
Main Technical Parameter
| Model | SM-1900 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 300 m/min |
| Max. cutting speed | 385 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1900(75”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 25000kgs |
| Full-load power | 100kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 100 | 210 |
| 500 | 110 | 220 |
| 600 | 155 | 260 |
| 700 | 230 | 320 |
| 750 | 290 | 385 |
| 800 | 300 | 380 |
| 900 | 300 | 345 |
| 1000 | 300 | 300 |
| 1100 | 290 | 265 |
| 1200 | 280 | 235 |
| 1300 | 260 | 210 |
| 1400 | 260 | 190 |
| 1500 | 260 | 175 |
| 1600 | 250 | 160 |
| 1650 | 250 | 155 |
Drawing
Double Roll
Four Rolls
Features Introduced
KMC-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. lt is the most popular and ideal cutting machine in paper making and printing industry at present.
Partial Introduction
Embedded double helix knife(invention patent)
Auto positioning slitting system
3 times delivery (No impression line)
卷簾式收紙-1-1.jpg)
Non-stop rolling curtain paper delivery device
Main Technical Parameter
| Model | KMC-1100/1500/1700 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision (1 roll) | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330m/min |
| Max. cutting speed | 540cuts/min |
| Max. scroll diameter | 1500mm(KMC-1100) 1800mm(KMC-1500/1700) |
| Max. paper cutting width | 1100(45”)mm 1500(59”)mm 1700(67”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220V×50Hz |
| G.W. (1 roll) | 18000/20000/23000kgs |
| Full-load Power | 75/88/88kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 195 | 435 |
| 500 | 240 | 480 |
| 600 | 325 | 540 |
| 700 | 330 | 475 |
| 800 | 330 | 410 |
| 900 | 325 | 365 |
| 1000 | 310 | 310 |
| 1100 | 300 | 275 |
| 1200 | 300 | 250 |
| 1300 | 305 | 235 |
| 1400 | 315 | 235 |
| 1500 | 330 | 220 |
| 1600 | 335 | 210 |
| 1650 | 335 | 210 |
Drawing
KMC-1500
KMC-1700
Features Introduced
KM-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. lt is the most popular and ideal cutting machine in paper making and printing industry at present.
Partial Introduction
Embedded double helix knife (Invention patent)
-3-1.jpg)
Slitting knifes (Optional)
Conveying unit
Main Technical Parameter
| Model | KM-1100/1500/1700 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 1 sheet(Optional) |
| Cutting precision (1 roll) | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330m/min |
| Max. cutting speed | 540cuts/min |
| Max. scroll diameter | 1500mm(KM-1100) 1800mm(KM-1500/1700) |
| Max. paper cutting width | 1100(45”)mm 1500(59”)mm 1700(67”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220V×50Hz |
| G.W. (1 roll) | 16000/18000/21000kgs |
| Full-load Power | 69/82/82kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 195 | 435 |
| 500 | 240 | 480 |
| 600 | 325 | 540 |
| 700 | 330 | 475 |
| 800 | 330 | 410 |
| 900 | 325 | 365 |
| 1000 | 310 | 310 |
| 1100 | 300 | 275 |
| 1200 | 300 | 250 |
| 1300 | 305 | 235 |
| 1400 | 315 | 235 |
| 1500 | 330 | 220 |
| 1600 | 335 | 210 |
| 1650 | 335 | 210 |
Drawing
KM-1100
Features Introduced
GM-1100/1500/1700/1900 Servo Precision High Speed Sheet Cutter apply the advanced techinque of Germany and England. The machine computer control system apply servo motor and AC transducer which are both international of top brand. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland. The electrical system adopts MOELLER&OMRON. The speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touchscreen makes the operation easy. The anti-curve rack assurethe paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benifit of your work.
Partial Introduction
Auto anti curve
Paper pre-press device
Three sets of slitting knife are used for trimming and middle slitting
Cutting knife unit
Anti-static device
Conveying unit
Main Technical Parameter
| Model | GM-1100/1500/1700/1900 |
| Model of cutting paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness of cutting paper | 60-550GSM |
| Cutting length range | 450-1600mm |
| The format of slitting | 2 sheet |
| Cutting precision | Cutting length≤1000mm: +/-0.5mm Cutting length>1000mm: +/-0.1% |
| Max. cutting meter speed | 350m/min |
| Max. cutting speed | 400cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100mm/1500mm/1700mm/1900mm |
| Max. paper piling height | 1500mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220V×50Hz |
| Gross weight | 11000kgs/13000kgs/15000kgs/17000kgs |
| Full-load Power | 22/26/30/35kw |
| High-precision single knife cutting machine | 1SET |
| Paper prismatic automatic adjustment system | 1SET |
| Equipment of electrostatic elimination | 1SET |
| Middle slitting and waste collection system | 1SET |
| Automatic counting and label inserting equipment | 1SET |
| Paper transporting equipment | 1SET |
| Automatic paper trimming and collecting machine | 1SET |
| Electrical controlling system | 1SET |
| Driving motor system | 1SET |
| Accessory by machine | 1SET |
| Double arm oil pressure shaftless mill roll stand | 1SET |
| Automatic directing and paper tension controller | 1SET |
| Equipment of automatic vacuum | 1SET |
| Operation system:LCD panel by operator | 1SET |
| Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.
Drawing
Double Roll
Four Rolls
Features Introduced
CM-1100/1500/1700/1900A Servo Precision Sheet Cutter apply the advanced technique of Germany and England. The computer control system apply AC servo motor and AC transducer. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINOLEVA from Switzerland. The electrical system adopts MOELLER&OMRON, the speed of cutting paper is fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touch screen makes the operation easy. The anticurve rack assures the paper flat. The machine is very popular in the paper making and printing industry.
Partial Introduction
Auto anti curve
Paper pre-press device
Three sets of slitting knife are used for trimming and middle slitting
Cutting knife unit
Anti-static device
Conveying unit
Automatic stacker
Main Technical Parameter
| Model | CM-1100/1500/1700/1900A |
| Model Of Cutting Paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness Of Cutting Paper | 60-550GSM |
| Cutting Length Range | 450-1650mm |
| The format of slitting | 1 sheet(Optional) |
| Cutting Precision | Cutting length≤1000mm: +/-0.5mm Cutting length>1000mm: +/-0.1% |
| Max. Cutting Meter Speed | 300m/min |
| Max. Cutting Speed | 400cuts/min |
| Max. Scroll Diameter | 1800mm |
| Max. Paper Cutting Width | 1100mm/1500mm/1700mm/1900mm |
| Max. Paper Piling Height | 1500mm |
| The Request For Air Compressor | 0.8Mpa |
| Power Consumption | 380V/220V×50Hz |
| Gross Weight | 9000kgs/11000kgs/13000kgs/15000kgs |
| Full-load Power | 22/26/30/35KW |
| High-precision single knife cutting machine | 1SET |
| Paper prismatic automatic adjustment system | 1SET |
| Paper transporting equipment | 1SET |
| Automatic paper trimming and collecting machine | 1SET |
| Electrical controlling system | 1SET |
| Driving motor system | 1SET |
| Accessory by machine | 1SET |
| Cone sheftless mill roll stand | 1SET |
| Paper tension controller | 1SET |
| Operation system:LCD panel by operator | 1SET |
| Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.
Drawing
Partial Introduction
Auto anti curve
Paper pre-press device
Three sets of slitting knife are used for trimming and middle slitting
Cutting knife unit
Anti-static device
Conveying unit
Automatic stacker
Main Technical Parameter
| Model | CM-1100/1500/1700/1900A |
| Model Of Cutting Paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness Of Cutting Paper | 60-550GSM |
| Cutting Length Range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting Precision | Cutting length≤1000mm: +/-0.5mm Cutting length>1000mm: +/-0.1% |
| Max. Cutting Meter Speed | 300m/min |
| Max. Cutting Speed | 400cuts/min |
| Max. Scroll Diameter | 1800mm |
| Max. Paper Cutting Width | 1100mm/1500mm/1700mm/1900mm |
| Max. Paper Piling Height | 1500mm |
| The Request For Air Compressor | 0.8Mpa |
| Power Consumption | 380V/220V×50Hz |
| Gross Weight | 11000kgs/13000kgs/15000kgs/17000kgs |
| Full-load Power | 26/30/34/39KW |
| High-precision single knife cutting machine | 1SET |
| Paper prismatic automatic adjustment system | 1SET |
| Paper transporting equipment | 1SET |
| Automatic paper trimming and collecting machine | 1SET |
| Electrical controlling system | 1SET |
| Driving motor system | 1SET |
| Accessory by machine | 1SET |
| Cone sheftless mill roll stand | 1SET |
| Paper tension controller | 1SET |
| Operation system:LCD panel by operator | 1SET |
| Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.
Drawing
Partial Introduction
Auto anti curve
Paper pre-press device
Three sets of slitting knife are used for trimming and middle slitting
Cutting knife unit
Anti-static device
Conveying unit
Automatic stacker
Main Technical Parameter
| Model | CM-1100/1500/1700/1900A |
| Model Of Cutting Paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness Of Cutting Paper | 60-550GSM |
| Cutting Length Range | 450-1650mm |
| The format of slitting | 4 sheet(Optional) |
| Cutting Precision | Cutting length≤1000mm: +/-0.5mm Cutting length>1000mm: +/-0.1% |
| Max. Cutting Meter Speed | 300m/min |
| Max. Cutting Speed | 400cuts/min |
| Max. Scroll Diameter | 1800mm |
| Max. Paper Cutting Width | 1100mm/1500mm/1700mm/1900mm |
| Max. Paper Piling Height | 1500mm |
| The Request For Air Compressor | 0.8Mpa |
| Power Consumption | 380V/220V×50Hz |
| Gross Weight | 13000kgs/15000kgs/17000kgs/19000kgs |
| Full-load Power | 31/35/39/44KW |
| High-precision single knife cutting machine | 1SET |
| Paper prismatic automatic adjustment system | 1SET |
| Paper transporting equipment | 1SET |
| Automatic paper trimming and collecting machine | 1SET |
| Electrical controlling system | 1SET |
| Driving motor system | 1SET |
| Accessory by machine | 1SET |
| Cone sheftless mill roll stand | 1SET |
| Paper tension controller | 1SET |
| Operation system:LCD panel by operator | 1SET |
| Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.
Drawing
Partial Introduction
Photoelectric tracking system
Edge posltion controller system
Fast sheet cutter
Main Technical Parameter
| Model | CM-1100/1500/1700/1900A |
| Model Of Cutting Paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness Of Cutting Paper | 60-550g |
| Max. Scroll Diameter | 1800mm |
| Max. Paper Cutting Width | 1100mm/1500mm/1700mm/1900mm |
| Cutting Length Range | 450-1650mm |
| The format of slitting | 1 sheet(Optional) |
| Cutting Precision | Cutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1% |
| Max. Cutting Speed | 300cuts/min |
| Max. Cutting Meter Speed | 300m/min |
| Max. Paper Piling Height | 1500mm |
| The Request For Air Compressor | 0.8Mpa |
| Power Consumption | 380V/220V×50Hz |
| Gross Weight | 9000kgs/11000kgs/13000kgs/15000kgs |
| Full-load Power | 22/26/30/35KW |
| High-precision single knife cutting machine | 1SET |
| Paper prismatic automatic adjustment system | 1SET |
| Paper transporting equipment | 1SET |
| Automatic paper trimming and collecting machine | 1SET |
| Electrical controlling system | 1SET |
| Driving motor system | 1SET |
| Accessory by machine | 1SET |
| Cone sheftless mill roll stand | 1SET |
| Paper tension controller | 1SET |
| Operation system:LCD panel by operator | 1SET |
| Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.
Drawing
